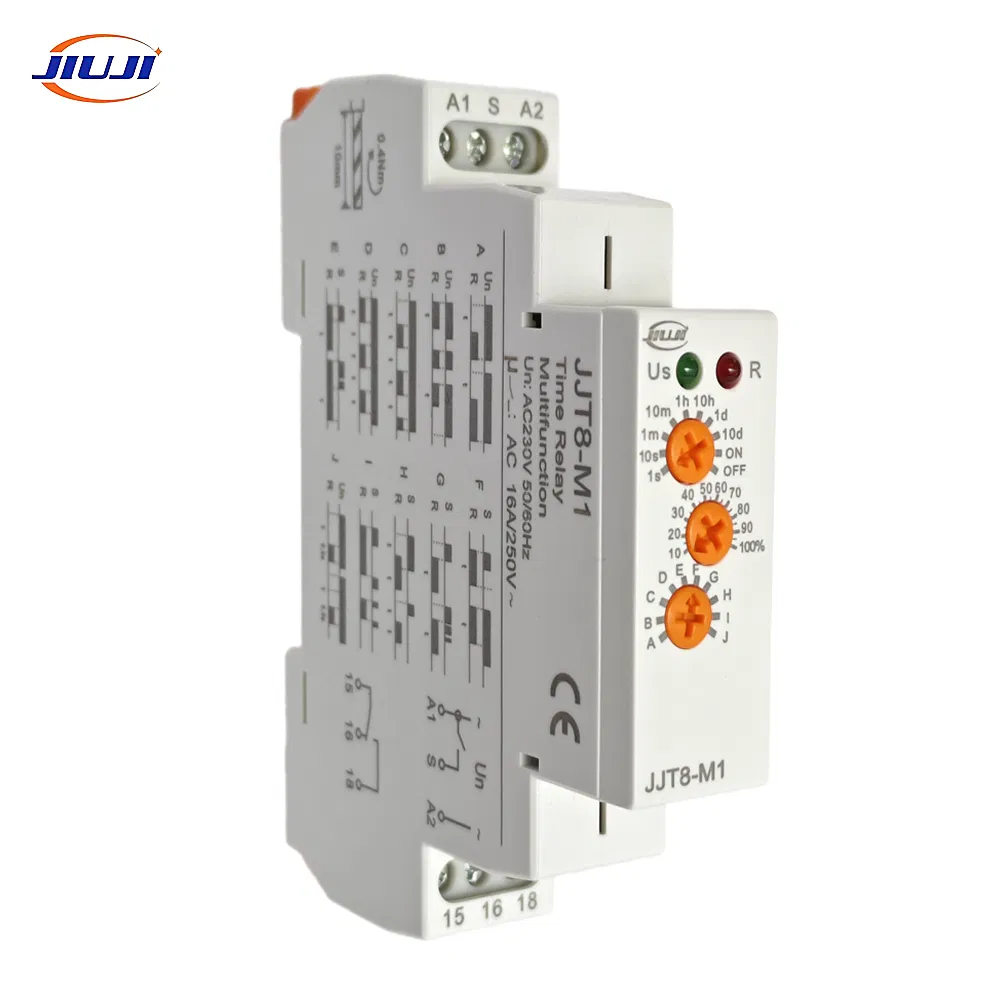

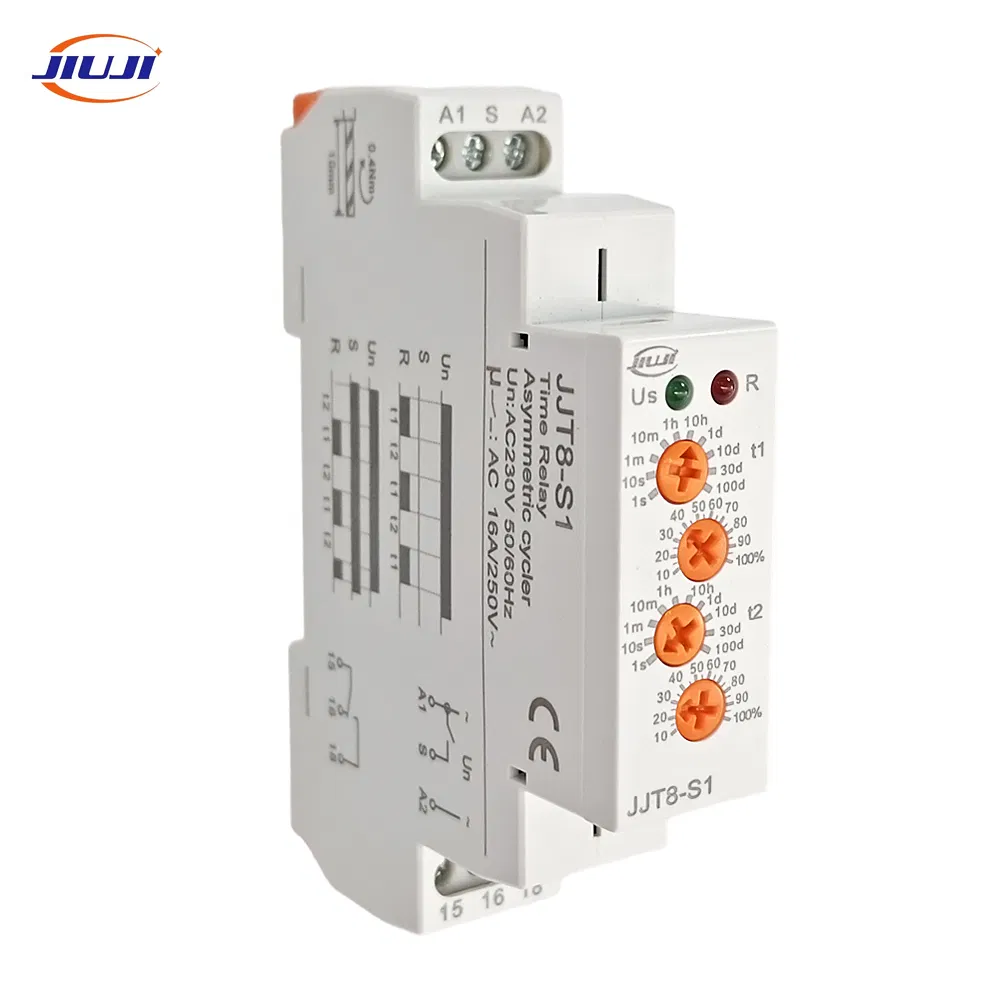

This multifunction cycling time relay is designed for applications that require repeated ON/OFF switching at adjustable intervals. Ideal for room ventilation, cyclic dehumidification, automatic lighting control, and circulating pumps. It offers two cycling modes—Cycling Start with Pulse and Cycling Start with Pause.
| Function | Asymmetric cycler time relay |
| Voltage range | AC/DC 12-240V (50-60Hz) |
| Time ranges | 0.1s - 10 days, ON, OFF |
| Current rating | 16A / AC1 |
| Supply indication | Green LED |
| Output indication | Red LED |
| Mechanical life | 1x10^7 |
| Mounting | DIN rail EN/IEC 60715 |
| Protection degree | IP40 for front panel / IP20 terminals |
| Dimensions | 90x18x64mm |
Delay On Timer Relay: Suitable for pump decay time after switching heating off and fan control.

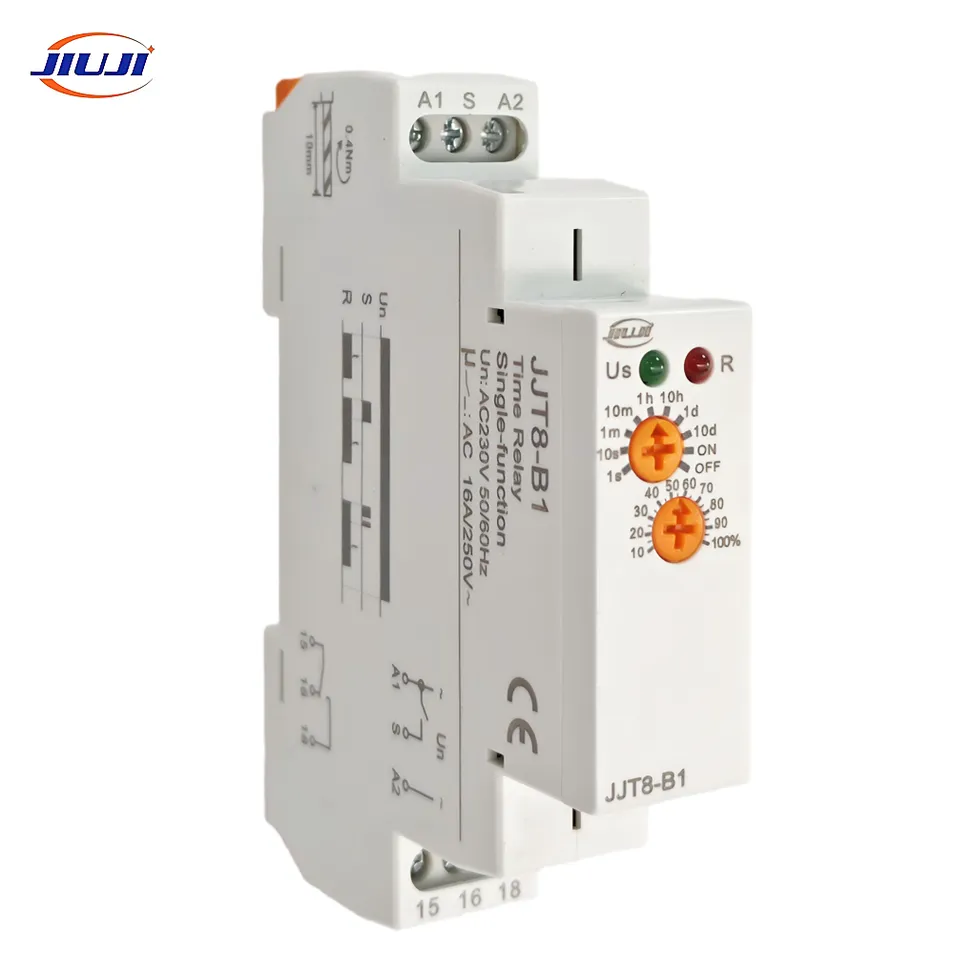

Delay Off Time Relay: 10 time ranges from 0.1s to 10 days.

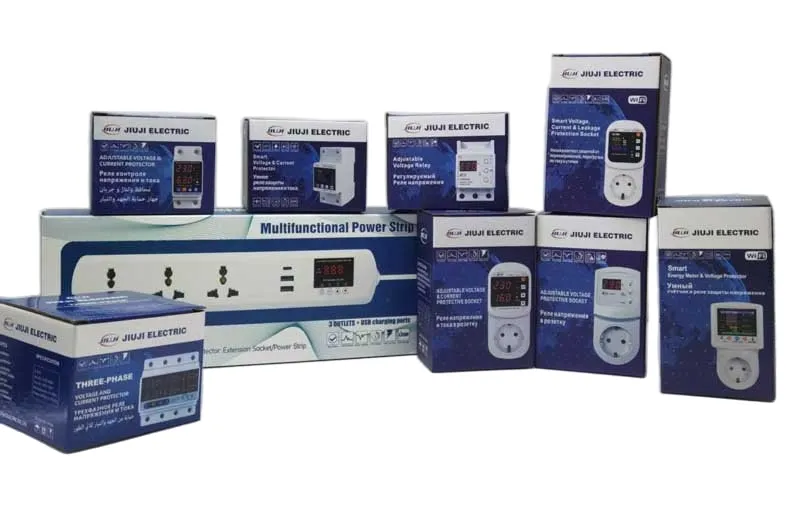

Each item is packed with premium materials and reinforced cushioning, keeping products safe from vibration and impact during global transit.
Standard Export Pack: 1× Time Relay, 1× Manual, 1× Custom Protective Box.

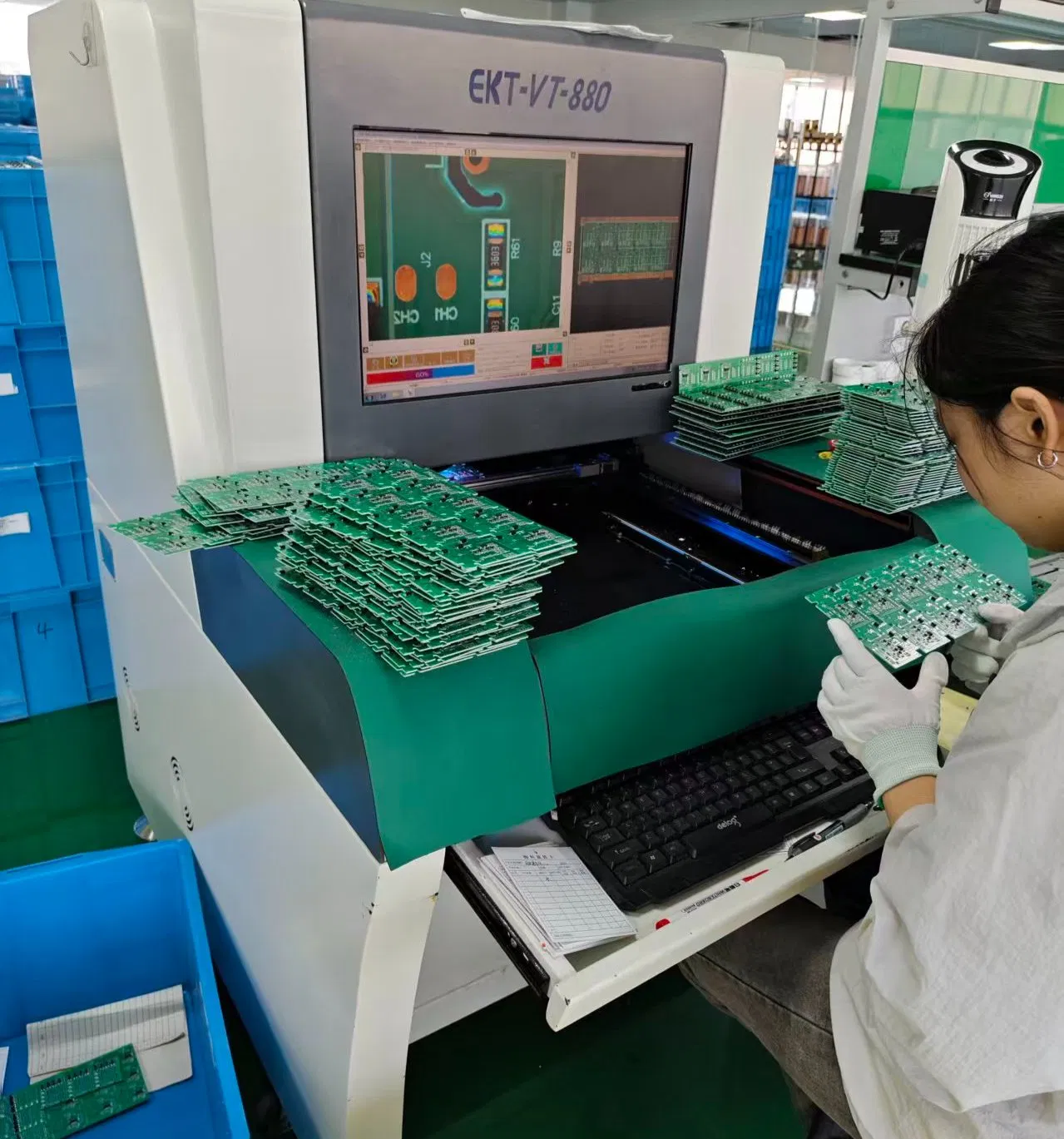

AOI Inspection: Every PCB undergoes Automatic Optical Inspection to guarantee stable soldering and performance.

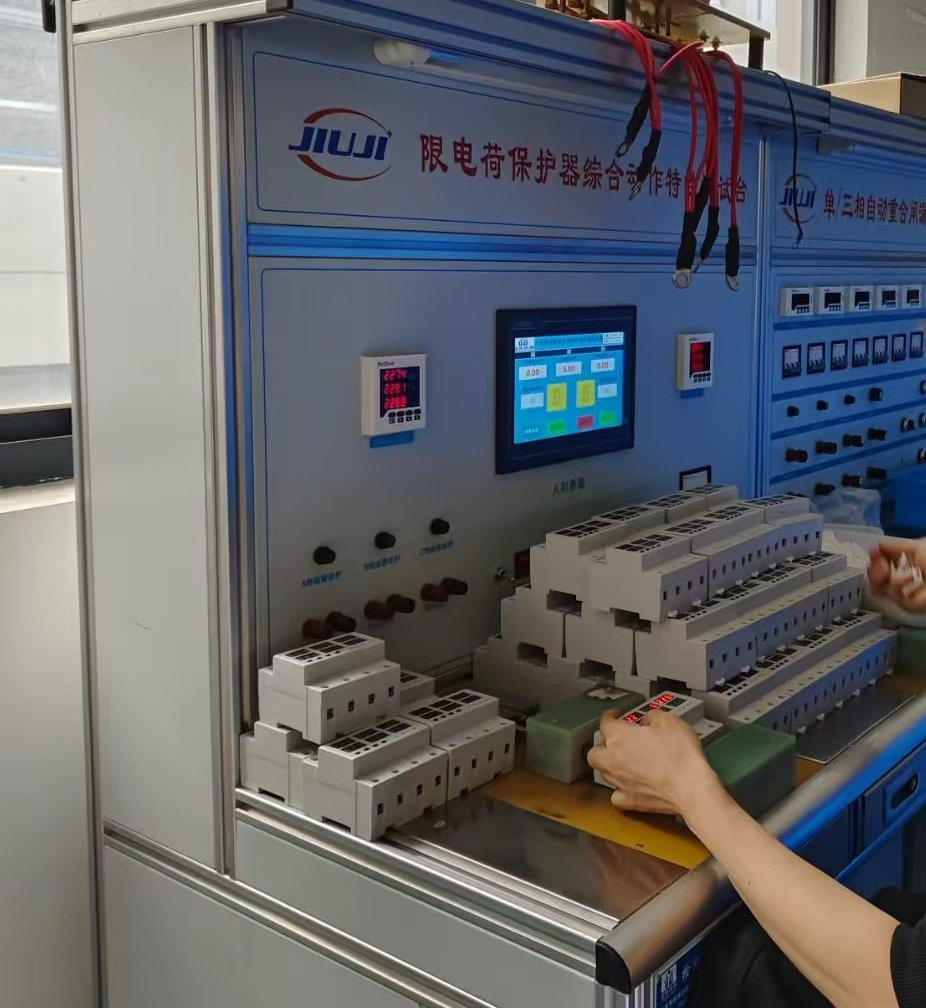

Testing Regimen: Comprehensive current and leakage tests ensure long-term reliability before factory release.
