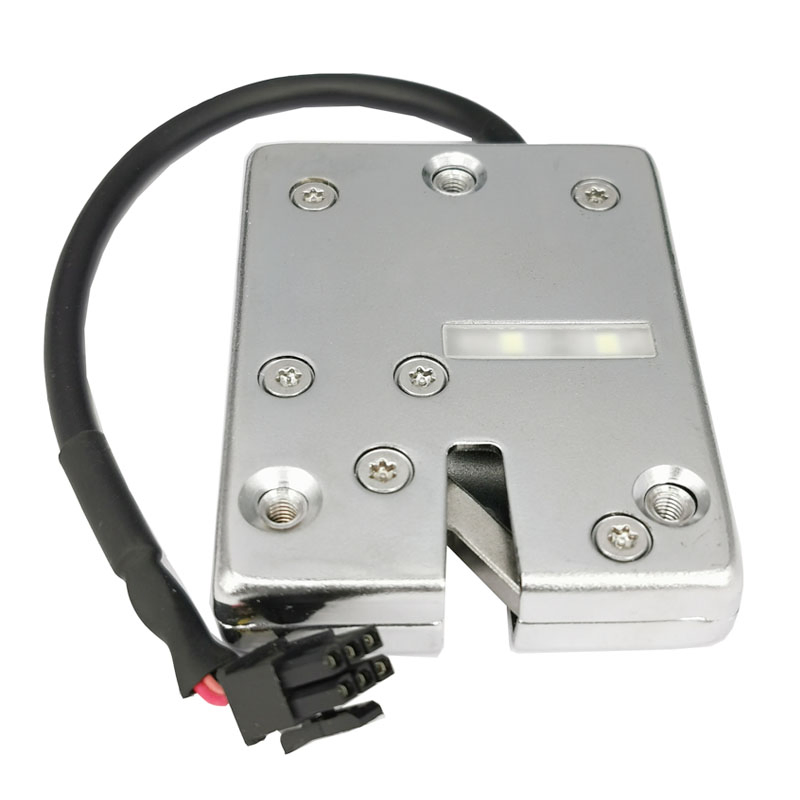

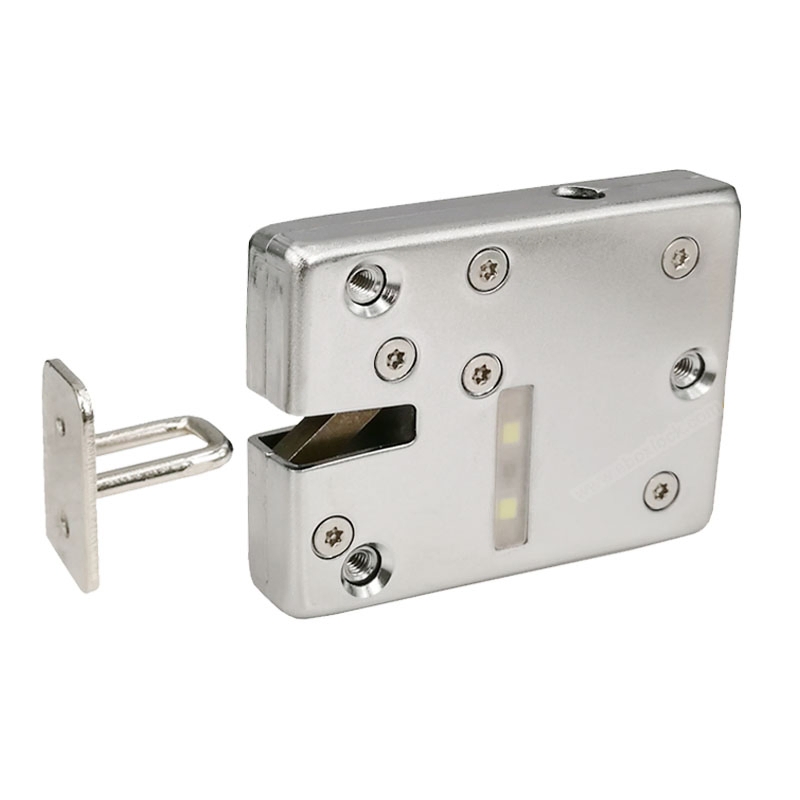

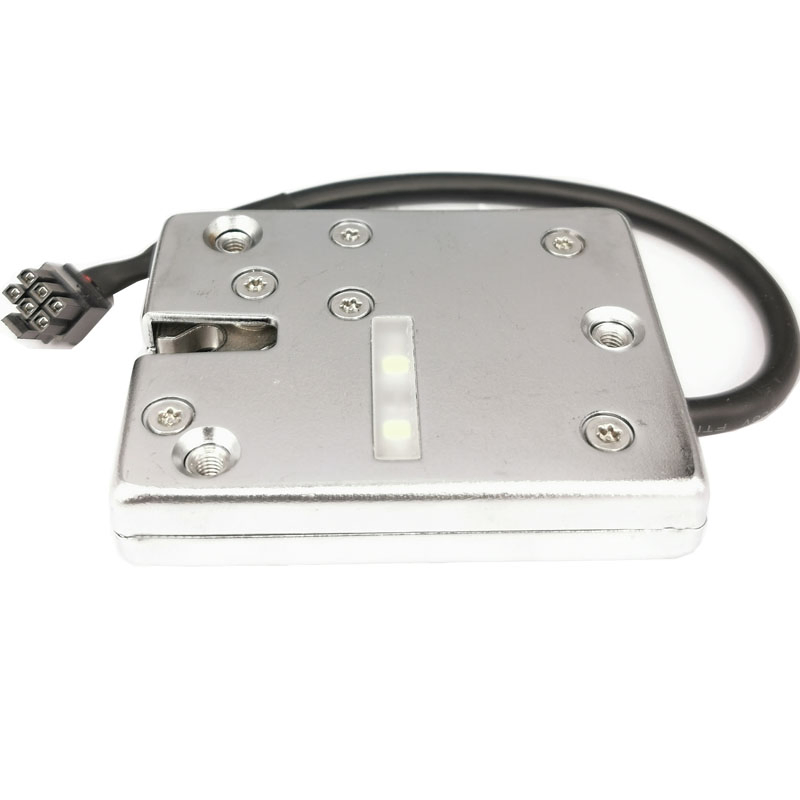

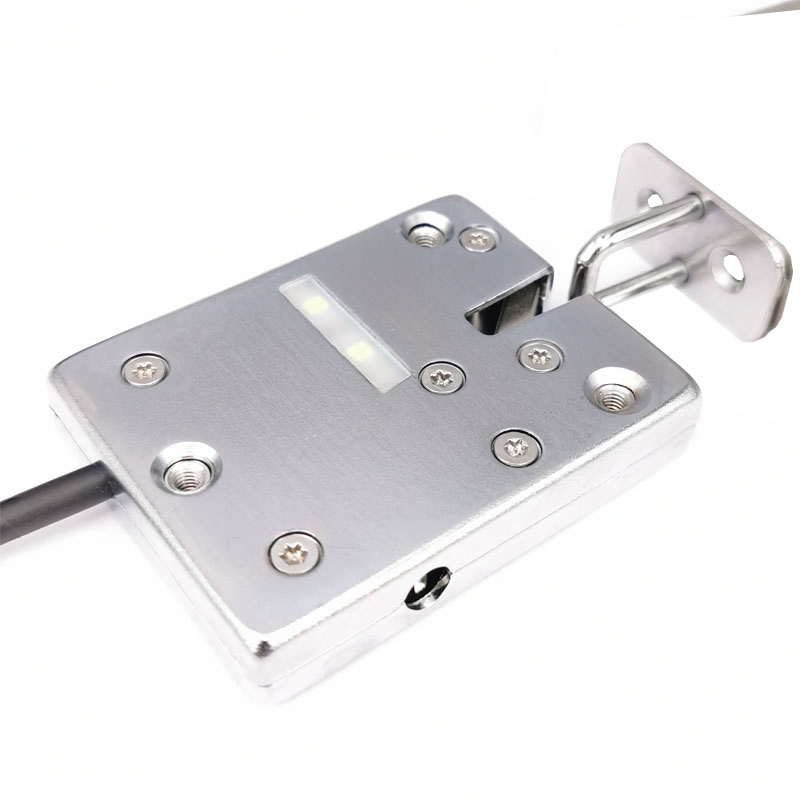

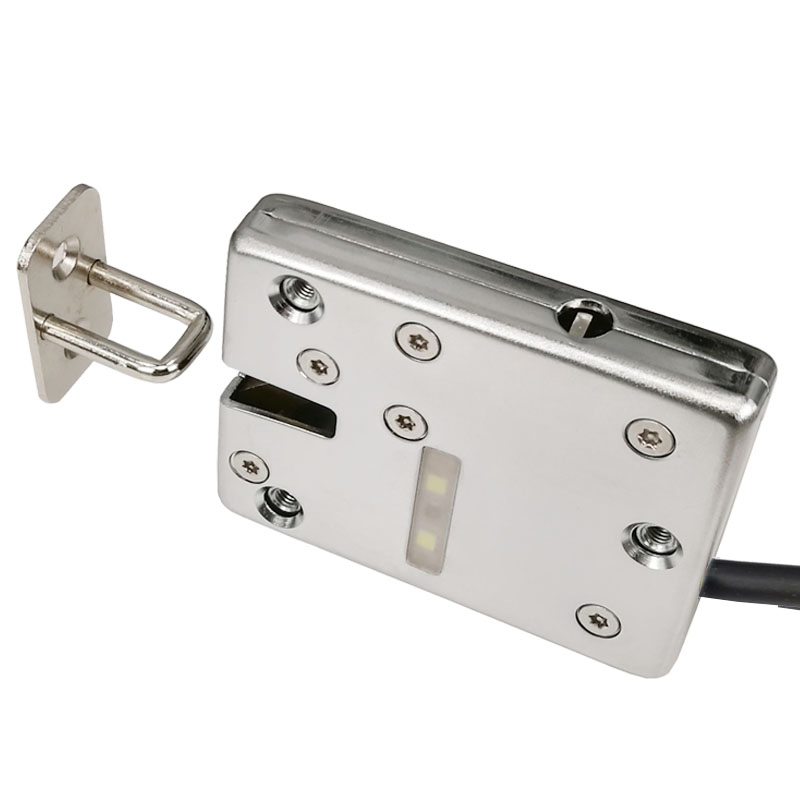

Electronic Furniture Lock MA1215S-T-124 features a built-in LED to offer lighting For Digital Locker Systems and Industrial Metal Storage Lockers. This compact electric lock allows controlled access to any cabinet, closet and drawer. An optional monitoring switch is available to indicate whether the mechanism is locked or unlocked. The cabinet lock is compatible with any access control system or standalone cabinet locking controller. It allows mechanical override for emergency open. The electronic cabinet lock is energy saving, cost efficient, robust, easy to install and suitable for one or multiple cabinet locking applications.
| Operation Voltage | 12/24VDC intermittent ±10% |
| Power Consumption | 24VDC 800mA |
| Operation Mode | Fail Locked |
| Holding Force | 150KG |
| Maximum Power On Time | Less than 30 second |
| Working Temperature | -20ºC ~ +60ºC |
| Dimensions (LxWxH) | 72mm*56mm*13.8mm |
| Protection Class | IP20 |

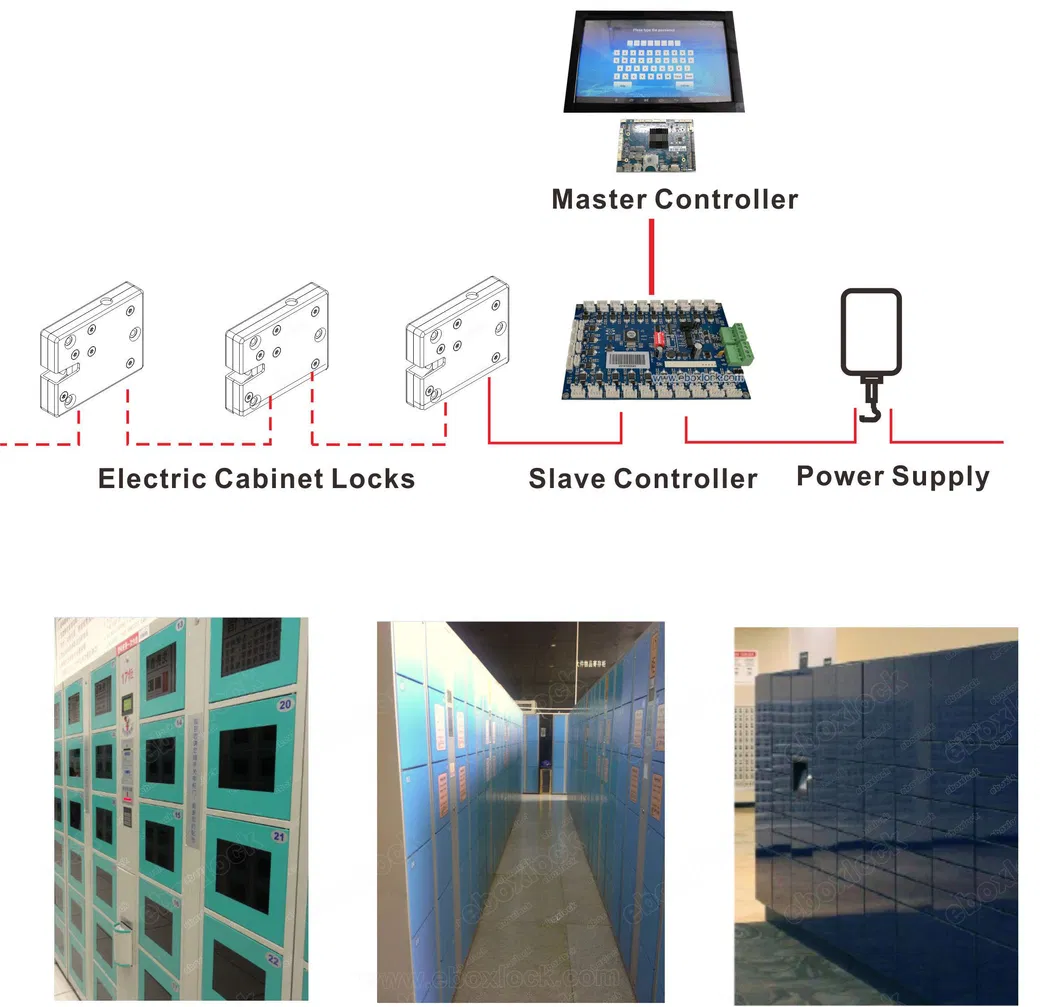

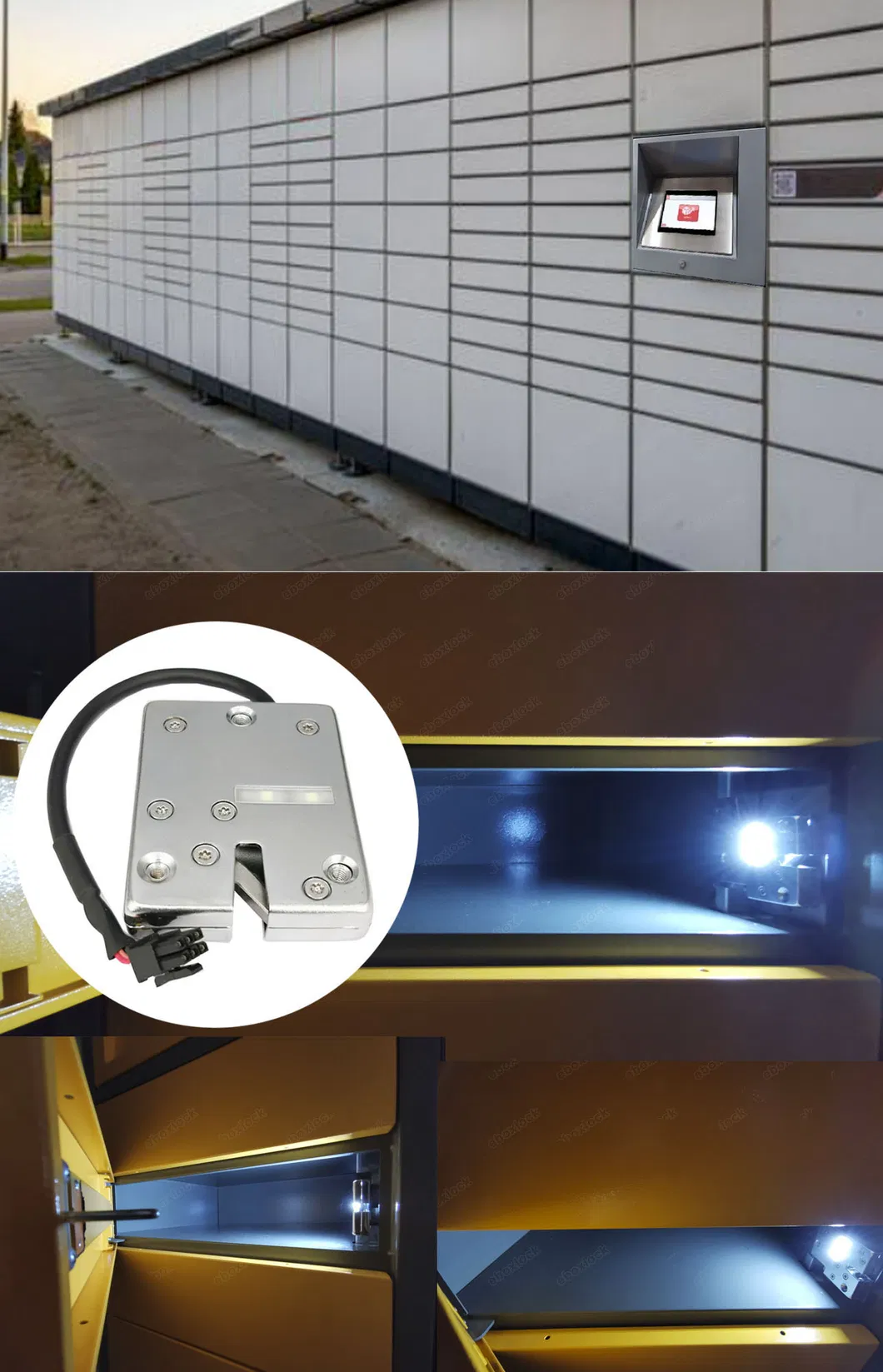

The electronic cabinet lock is ideal for various applications including:
Specializing in electrified locking solutions for lockers, cabinets, and kiosks. Whether for size-restricted enclosures or heavy-duty metal cabinets, customized designs are available to meet particular security requirements. Our range covers electronic cabinet locks, smart parcel locker control systems, and IOT control hardware/software. Quality control is integrated into the entire process with multi-stage testing to ensure professional-grade reliability.
