Df518h150 Full Power Conversion Kit 150W Emergency Battery 230V Light Driver Tunnel Light LED Emergency Power

1 / 5

Df518h150 Full Power Conversion Kit 150W Emergency Battery 230V Light Driver Tunnel Light LED Emergency Power

Customization:	Available
Certification:	CCC, ISO, CE, RoHS
Warranty:	2 Years

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

DF518H150

Input Voltage

AC90-280V

Output Voltage

AC/DC90-280V

Light Power

100-200W

Emergency Power

150W

Emergency Time

180min

Function

Self-Test, Monthly Test, Annual Test

Battery Capacity

Li-ion Battery 37V 15000mAh 555wh

Waterproof Rate

IP20

Charge Time

≥24hours

Product Description

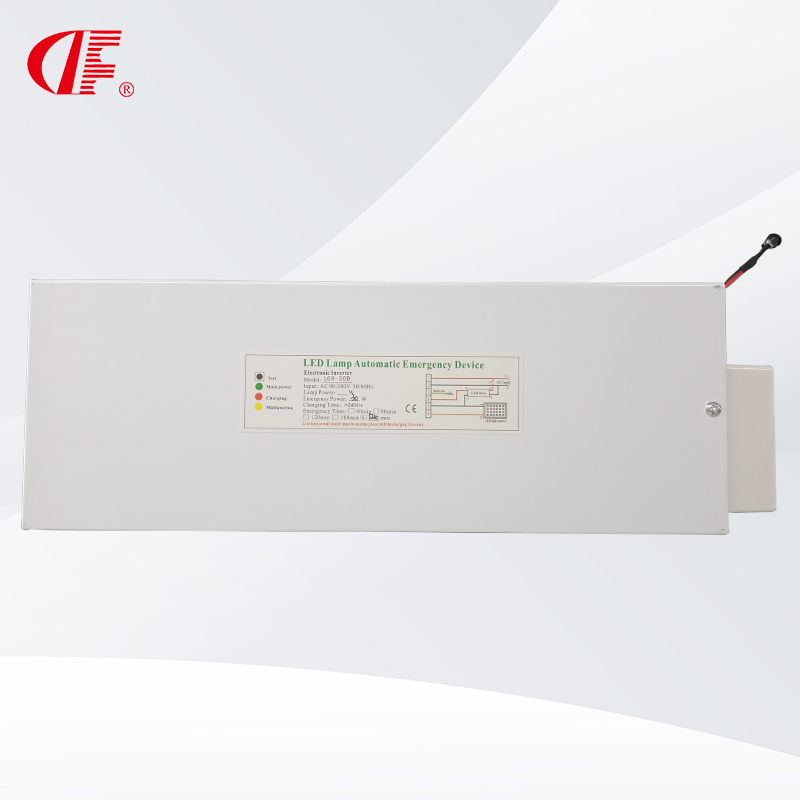

DF518H150 Full Power Conversion Kit 150W Emergency Battery

This kit provides big power to a wide range of 100W~200W LED lights, maintaining 100% illumination for 1 to 3 hours during power failures. It features high-temperature lithium batteries and an intelligent IC control circuit with self-test capabilities.

Highlight Features

Smart IC Control: Offers self-test, monthly test, and annual test functions for maintenance-free operation.
Dual Protection: Built-in dual lithium battery protection IC prevents overcharge and over-discharge.
Constant Output: Features isolation circuits and no-load protection for enhanced safety.
Automated Monitoring: Continuously monitors functionality to ensure emergency readiness.

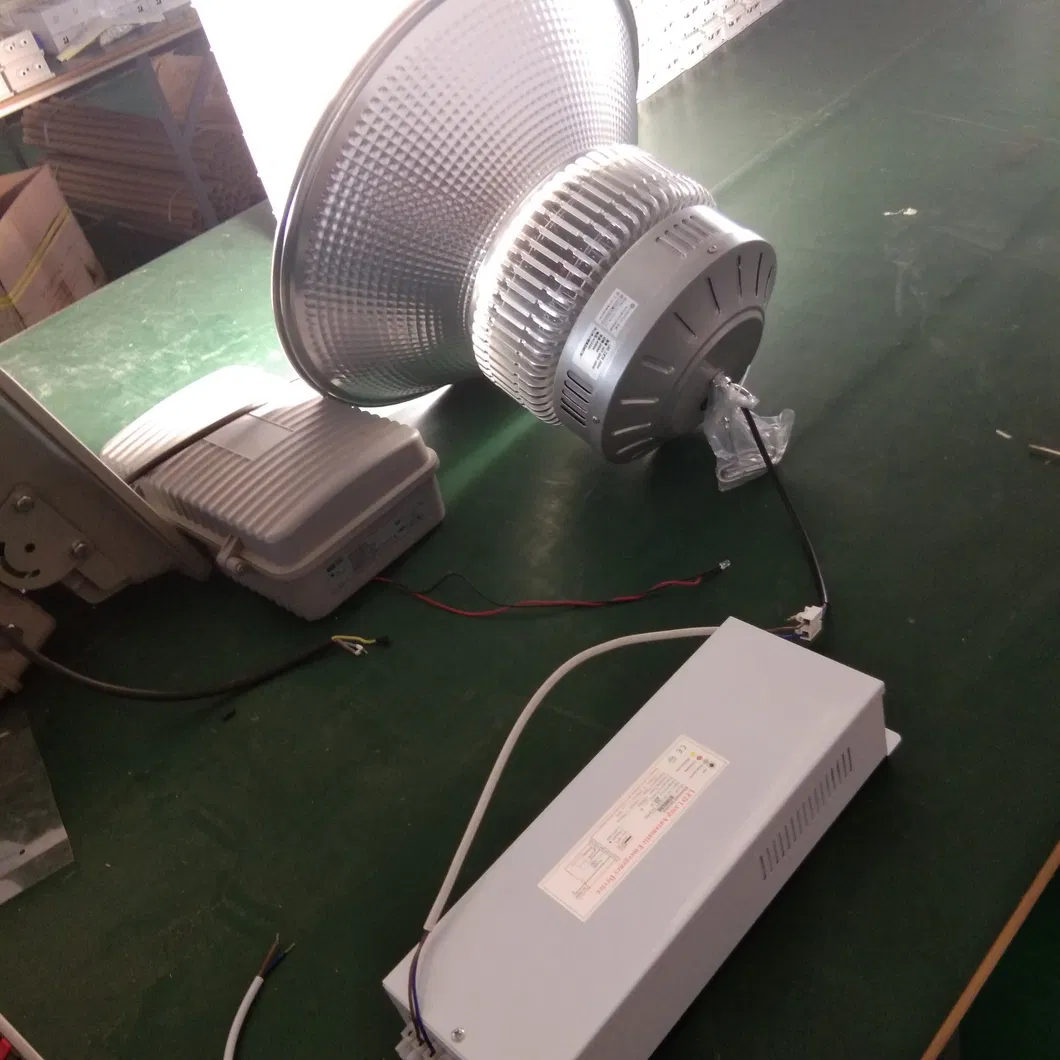

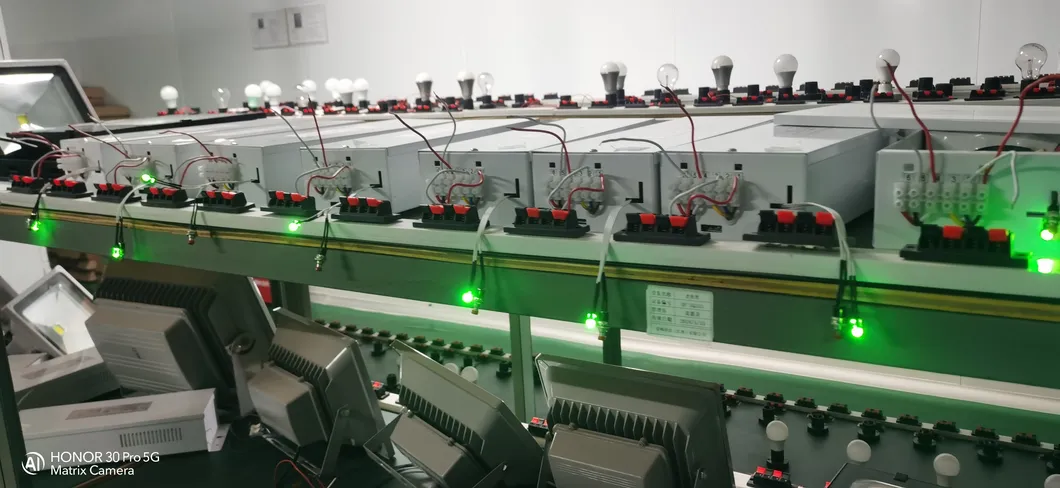

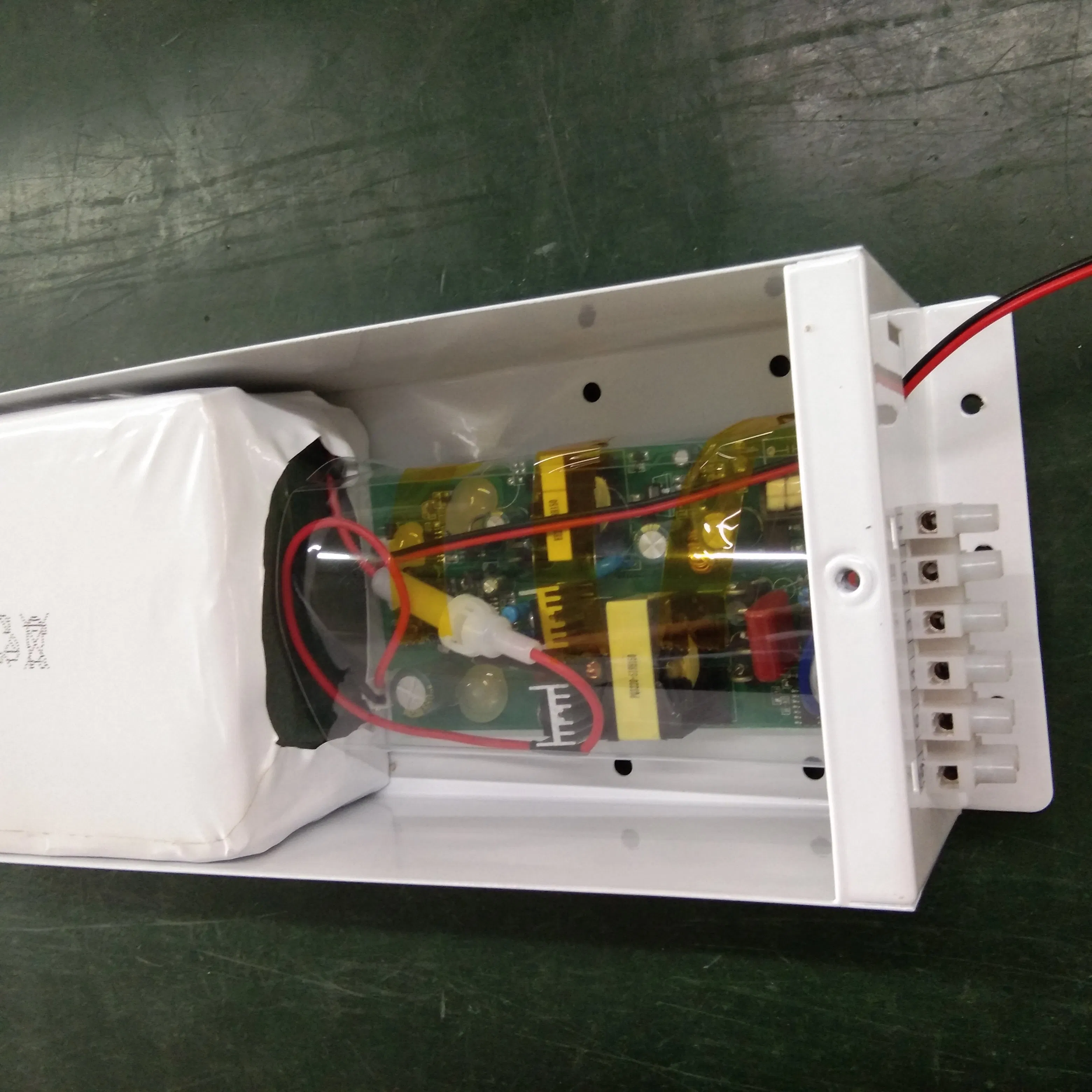

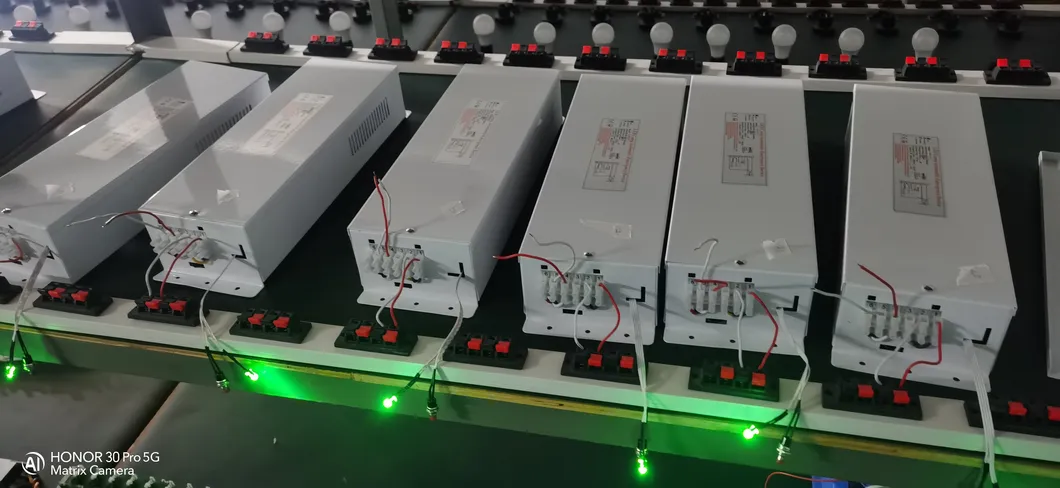

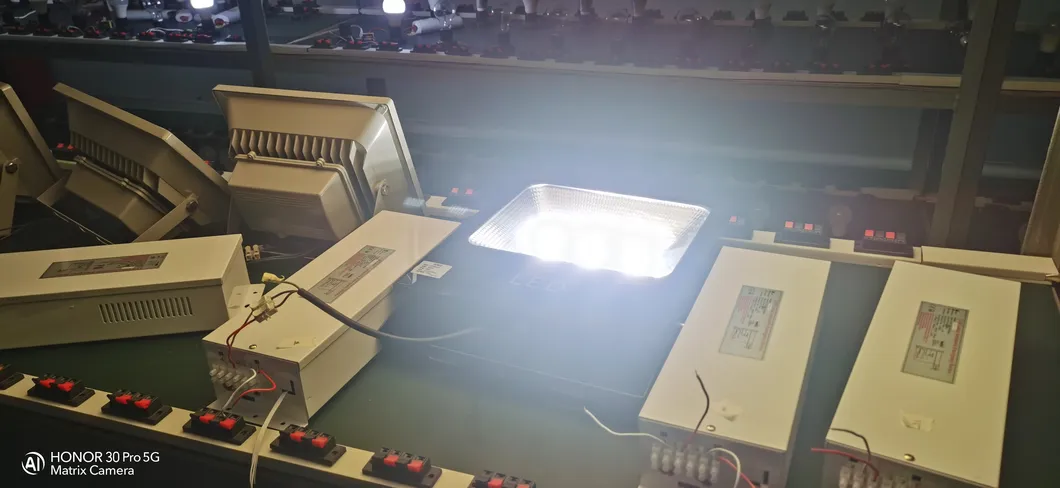

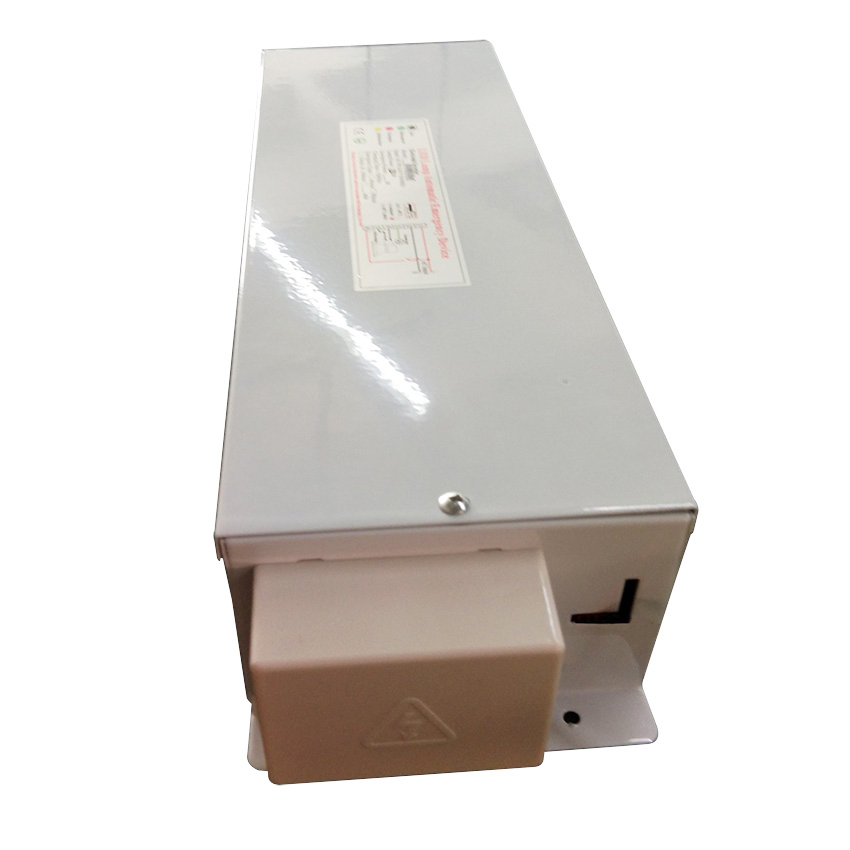

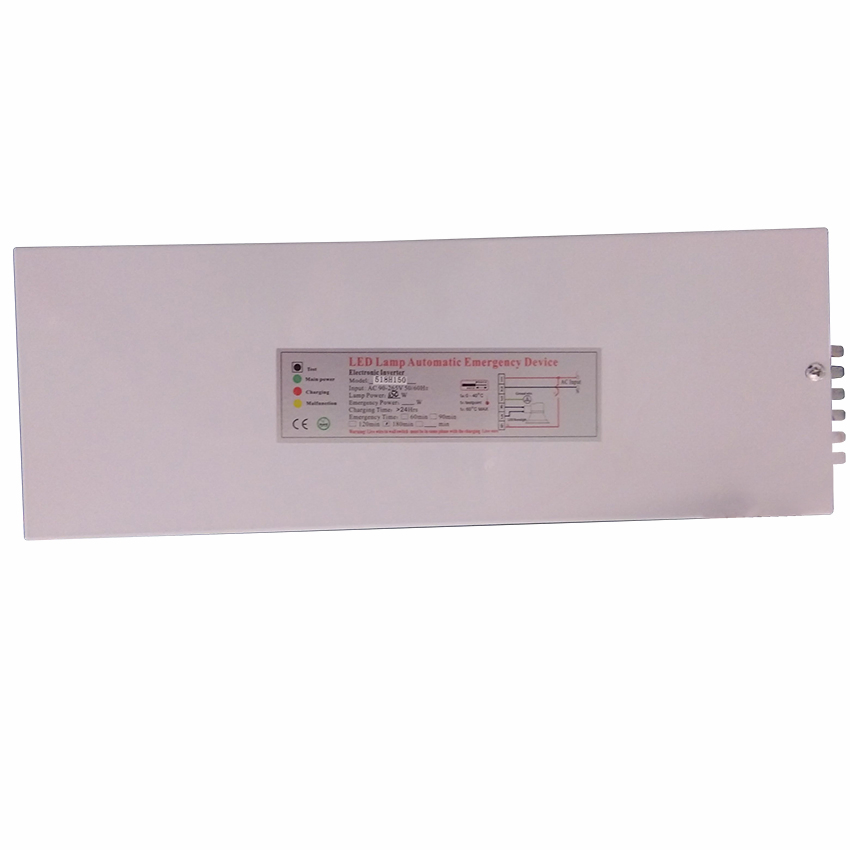

Detailed Photos

Product Parameters

Model	DF518H50
Support LED Power	100-200W
Emergency Output Power	150W
Input Voltage	AC90-280V
Battery	Li-ion Battery 37V 15000mAh 555Wh
Emergency Time	180min
Inverter Size	39012075MM

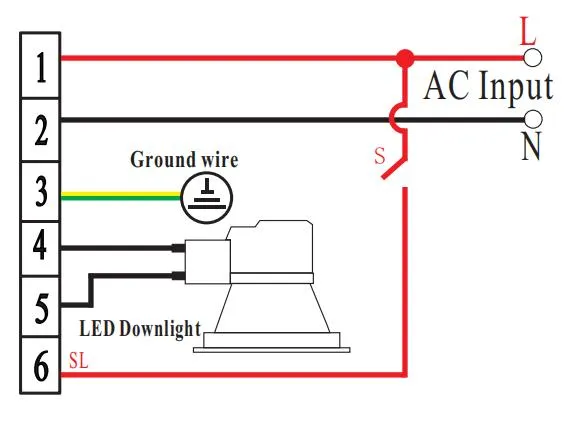

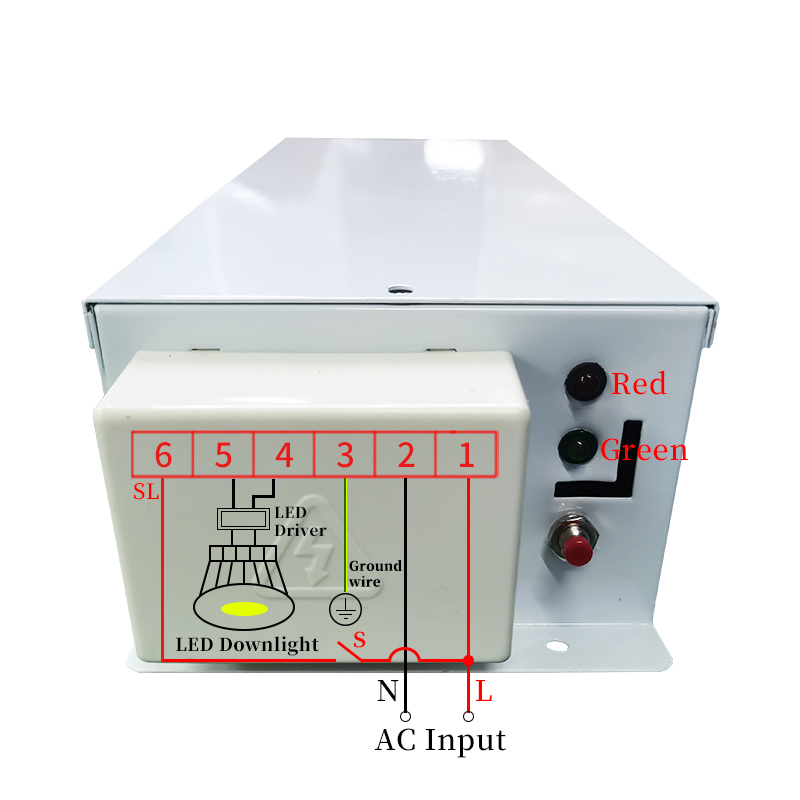

Installation Instructions

1	Connect Fire Wire L + Connect switch line S
2	Connect the null line N
3	Connect the ground wire
4 & 5	Connect LED driver and light source (suitable for external drive)
6	Connect switch line to Live Line port 1

Company Capabilities & Certifications

We are a high-tech enterprise integrating design, R&D, and production of emergency energy storage solutions. Our production plant covers 20,000 square meters, specializing in LiFePO4 batteries and intelligent charging systems.

Packaging & Shipping

Frequently Asked Questions

What is the main function of the self-testing feature?

The self-test feature automatically monitors the battery and circuit functionality monthly and annually, ensuring the system is ready for emergencies without manual labor.

How long does the battery last during a power outage?

The DF518H150 kit provides up to 180 minutes (3 hours) of full-power emergency illumination.

What type of lights are compatible with this kit?

It is designed for high-power LED lights ranging from 100W to 200W, commonly used in tunnels and large industrial spaces.

Is the battery protected against overcharging?

Yes, the kit includes a dual lithium battery protection IC that prevents both overcharge and over-discharge to extend battery life.

What is the standard charging time for the emergency kit?

A full charge requires at least 24 hours of continuous connection to the main power supply.

Can this unit be used in wet environments?

This unit has an IP20 rating, meaning it is protected against solid objects but should be used in indoor or protected environments.
